N8AO

A fast, high quality ambient occlusion pass, wrapping N8python/n8ao. Self-contained - unlike SSAO, it does not need enableNormalPass on <EffectComposer>.

import { N8AO } from '@react-three/postprocessing'

return (
  <N8AO
    enabled={true} // toggle the pass without unmounting it
    aoRadius={5} // ambient occlusion sampling radius
    distanceFalloff={1} // distance falloff
    intensity={1} // AO intensity
    quality="performance" // 'performance' | 'low' | 'medium' | 'high' | 'ultra'
    aoSamples={16} // amount of ambient occlusion samples per frame
    denoiseSamples={4} // amount of denoise samples per frame
    denoiseRadius={12} // denoise sampling radius
    color={undefined} // tints the occlusion, defaults to black
    halfRes={false} // renders the effect at half resolution
    depthAwareUpsampling={true} // enables or disables depth-aware upsampling
    screenSpaceRadius={false} // scales the sampling radius with distance from the camera
    renderMode={0} // 0: Combined, 1: AO only, 2: No AO, 3: Split, 4: Split AO
  />
)

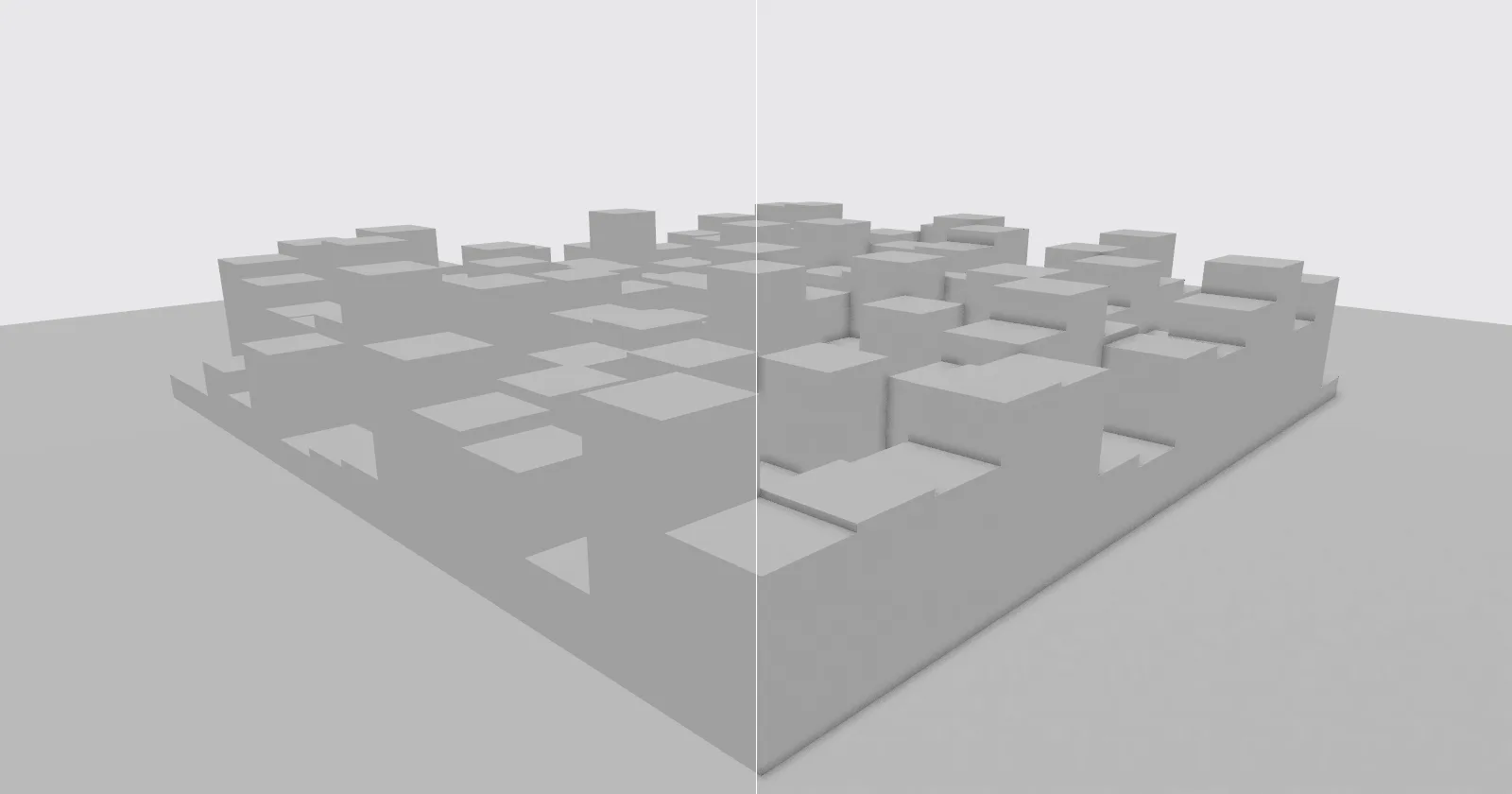

Example

Props

Name	Type	Default	Description
enabled	Boolean	true	Toggles the pass without unmounting it.
aoRadius	Number	5	The ambient occlusion sampling radius.
distanceFalloff	Number	1	The distance falloff.
intensity	Number	1	The AO intensity.
quality	'performance' \| 'low' \| 'medium' \| 'high' \| 'ultra'	'performance'	The quality preset.
aoSamples	Number	16	The amount of ambient occlusion samples per frame.
denoiseSamples	Number	4	The amount of denoise samples per frame.
denoiseRadius	Number	12	The denoise sampling radius.
color	Color	undefined	Tints the occlusion. Defaults to black.
halfRes	Boolean	false	Renders the effect at half resolution.
depthAwareUpsampling	Boolean	true	Enables or disables depth-aware upsampling.
screenSpaceRadius	Boolean	false	Scales the sampling radius with distance from the camera.
renderMode	0 \| 1 \| 2 \| 3 \| 4	0	0: Combined, 1: AO only, 2: No AO, 3: Split, 4: Split AO.
